Model Number: AZMOD003
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
Enquire Now
Manufacturer: Asiczen Technologies
  • Description
  • Specifications

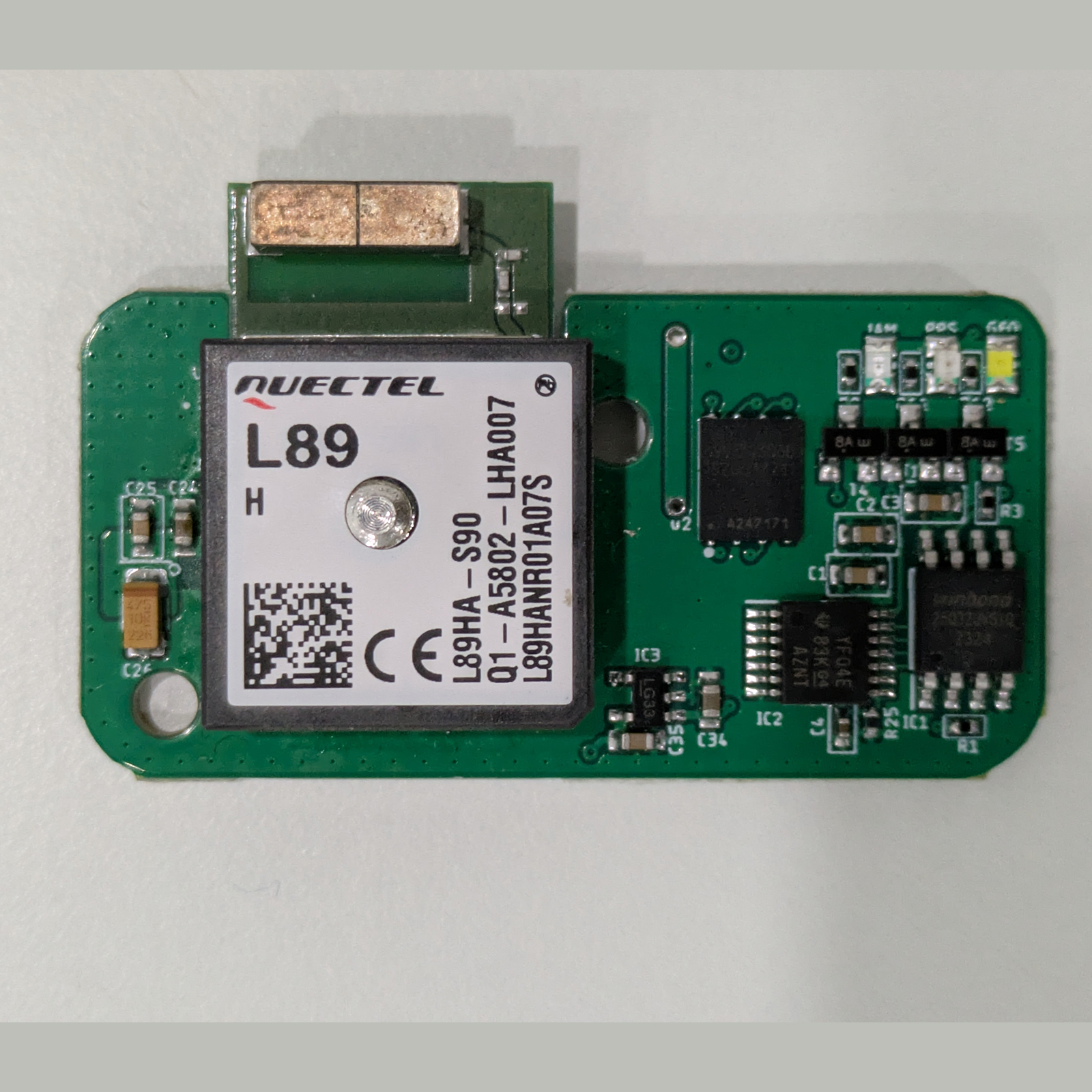

This AIS-certified PCB integrates the MC60 GSM/GNSS module with the high-precision L89 GNSS receiver for reliable tracking and communication. It features onboard accelerometer, external flash memory, and watchdog timer for enhanced safety and event logging. With support for reverse polarity protection, and a high-efficiency buck converter, it is ideal for automotive and asset tracking applications. The board includes 4 status LEDs and safeguards like fuse-based overcurrent protection. Designed for rugged use, it meets AIS certification requirements for vehicle tracking systems.

1. Cellular Connectivity

GSM/GPRS Support: Quad-band 850/900/1800/1900 MHz for global coverage.
Data Services: GPRS multi-slot class 12, coding schemes CS1 to CS4.
Protocols Supported: TCP/IP (with built-in stack), HTTP/HTTPS, FTP, SSL, MQTT (lightweight IoT communication)
SMS Functionality: Supports text and PDU modes and SMS storage to SIM or module.
Firmware Updates: Support for OTA firmware upgrades.

2. GNSS – Global Navigation Satellite System

On board L89
Type: Multi-Constellation GNSS Receiver
Features:
Constellation Support: GPS, GLONASS, Galileo, BeiDou, QZSS
Channels: 99 acquisition channels, 33 tracking channels
Update Rate: 1 Hz (up to 10 Hz optional)
Accuracy: <2.5m CEP
Cold Start: <35s, Warm Start: <30s, Hot Start: <1s
Interface: UART
Voltage: 3.0V – 4.3V
Use Case: Real-time location tracking and navigation, geo-fencing
Antenna: GNSS antenna with optional external antenna support.

3. Wireless Features

Bluetooth: Version: BT 3.0
Supported Profiles: SPP (Serial Port Profile)

4. Power Specifications (As per AIS standards)

Input Voltage Range: 12V to 24V DC.
Power Efficiency: Integrated high-efficiency regulators for stable performance.
Sleep Current: Ultra-low power mode (<10mA in sleep).
Battery Support: Optional Li-Ion/Li-Po battery interface with charging circuitry.

5. Interfaces

UART: Configurable baud rate up to 230400 bps, AT command interface.
GPIO: Several general-purpose I/O pins for external device control.
ADC: 10-bit ADC input for analog signal monitoring.
Status LEDs: 4 Onboard LEDs to indicate various device states such as power, network status, GNSS fix, and user-defined alerts.

6. SIM & Antenna

SIM Type: Micro SIM slot and E-SIM compatible.
Antenna:
GSM: Integrated PCB antenna.
GNSS: Integrated with support for external active/passive antennas.

7. Environmental & Mechanical (As per AIS standards)

Operating Temperature: -10°C to +80°C.
Storage Temperature: -15°C to +90°C.
Humidity: Up to 95% RH non-condensing.
Form Factor: Compact PCB design (Size).

8. On Board watchdog timer Circuit

Type: External Hardware Watchdog Circuit
Features:
Timeout Range: Adjustable (typ. 1s – 120s)
Voltage: Compatible with core system voltage (e.g., 3.3V)
